Precision Round Components Manufacturing

Leadpoint manufactures custom shafts, pins, sleeves, bushings, nozzles, threaded cores, guide components, and other cylindrical parts. CNC turning, cylindrical grinding, centerless grinding, milling, and EDM are combined to control diameter, roundness, concentricity, runout, fit, and surface condition for demanding assemblies.

Precision turning and cylindrical finishing
Control of diameter, roundness, concentricity and runout
Metals, tool steels, carbide and engineering plastics
Prototype, replacement and repeat production support

Get Free Quote

High-precision die casting for metal parts

Efficient production with minimal material waste

Drawing-Based Production
Multi-Process Machining
Inspection Reports Available
NDA Available

Our Capabilities

We provide comprehensive stamping and die-casting mold solutions covering the full mold lifecycle
— from design and prototyping to precision machining, assembly, and trial production.

Precision Shafts & Pins

Covers stepped shafts, locating pins, guide pins and actuator pins.

Tight tolerance for diameter, shoulders and threads.

Fine surface finish to lower movement friction.

Rotary Wear‑Resistant Bushings

Rotating bushings, wear sleeves and rotary core sleeves.

High roundness and low‑friction surface treatment.

For long‑life rotating friction scenarios.

Sleeves & Guide Components

Includes thin‑wall sleeves, bearing seats, spacer sleeves.

High‑precision cylindrical mating surfaces.

For mold, automation and industrial equipment.

Nozzles, Valve & Fluid Components

Custom nozzles, valve stems, plungers and sealing parts.

Satisfy corrosion‑resistance, pressure‑resistance and cleanliness for stable fluid performance.

Threaded Cores & Cylindrical Mold Parts

Threaded cores, core pins, ejector sleeves, locating rings.

Accurate threads, interchangeable for convenient mold maintenance.

Complex Turn‑Mill Components

Round parts with flats, holes, slots and eccentric features.

One‑setup turn‑mill machining to reduce cumulative errors.

Mold Machining Components

Stepped & drive shafts, spindles, precision rods

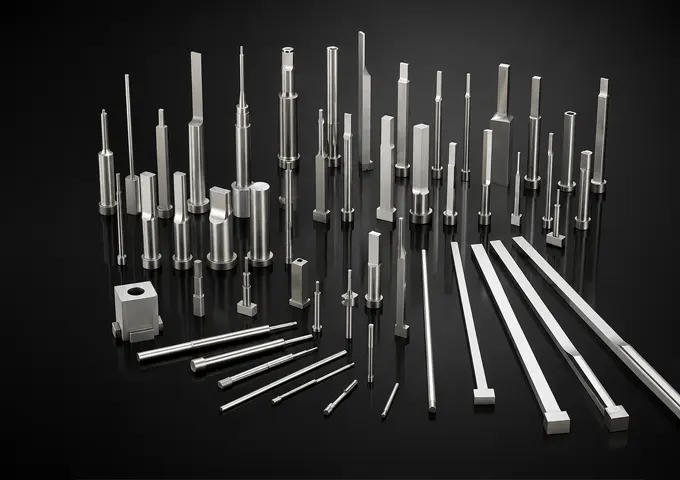

Guide Pins, Dowel Pins, Core Pins And Threaded Cores

Sleeves, Bushings, Bearing Seats And Ejector Sleeves

Nozzles, Plungers, Valve Stems & Actuator Components

Round Carbide Punches And High‑Wear Rotary Parts

Turn‑Mill Components With Flats, Holes And Slots

Case Studies

View All Case Studies

Tolerance & Accuracy

Tolerance Level	Tolerance Range	Application
Datum & Rotation‑Axis	ISO 5459 standard	All precision round parts, multi‑feature turn‑mill components
Diameter & Fit	ISO 286 IT5‑IT7; IT4 for precision fit	Shafts, pins, bushings, bearing seats, sleeves
Roundness / Cylindricity	0.001mm‑0.005mm	Rotary shafts, sealing parts, guide bushings, nozzles
Concentricity / Run‑out	0.002mm‑0.01mm	Stepped shafts, offset parts, rotating cores, spindles
Straightness	0.002mm‑0.008mm	Precision round rods, ejector sleeves, long guide pins
Thread / Groove / Hole‑Position	ISO 965 6g/6H, positional tolerance	Threaded cores, threaded shafts, slotted & cross‑hole parts
Surface Roughness / Sealing Surface	Ra 0.05μm‑3.2μm	Sliding surfaces, sealing components, nozzles, high‑gloss parts
Hardness & Material	HRC 55‑62, ASTM/ISO compliant	Wear‑resistant parts, load‑bearing shafts, high‑strength components
First‑Article & Batch Consistency	Full first‑article & key‑dimension 100% inspection	All mass‑produced parts, custom non‑standard parts

Not sure about the right tolerance for your part?

Our engineering team can help optimize your design.

Available Materials

. Metal .
- Aluminum Alloys
  Lightweight, corrosion-resistant, and easy to machine. Ideal for parts requiring strength with reduced weight.
  Typical Applications

  Electronic Housings

  Heat Sinks

  Structural Brackets

  Automotive components
  Cost Efficiency:
- Stainless Steel
  High strength and excellent corrosion resistance, suitable for harsh environments.
  Typical Applications

  Valves and fittings

  Medical components

  Mechanical parts

  Food-grade equipment
  Cost Efficiency:
- Carbon Steel
  Strong and durable material with good mechanical properties, widely used in industrial applications.
  Typical Applications

  Machine components

  Structural parts

  Industrial equipment
  Cost Efficiency:

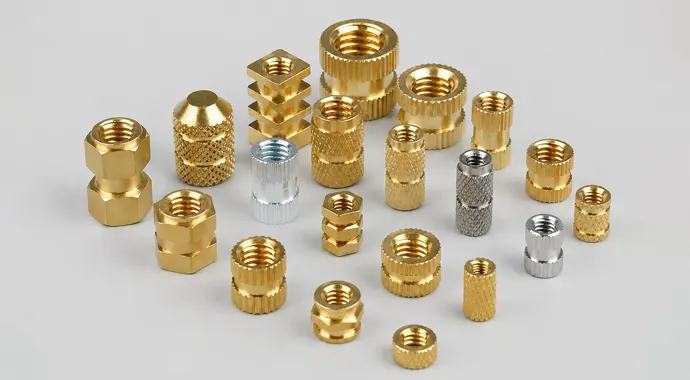

- Brass
  Easy to machine with excellent electrical conductivity and corrosion resistance.
  Typical Applications

  Connectors

  Fittings

  Electrical components
  Cost Efficiency:
- Titanium
  High strength-to-weight ratio with superior corrosion resistance and biocompatibility.
  Typical Applications

  Aerospace components

  Medical implants

  High-performance mechanical parts
  Cost Efficiency:

Don’t See the Material You Need?

Explore our full material list or contact our engineering team for recommendations.

View Full Material Guide

Machining & Surface Processing Capabilities

We provide full‑chain manufacturing solutions for precision round components, covering CNC turning, compound machining, grinding, special processing, surface treatment, heat treatment and strict dimensional‑geometric inspection to satisfy diverse tolerance, surface and performance requirements.

CNC Turning

For Machining Diameters, Shoulders, Grooves, Threads And Internal Bores.
Turn‑Mill Machining

For Cross Holes, Flats, Slots And Off‑Axis Features In One Setup.
Cylindrical Grinding

Achieve Precision Diameters And High‑Quality Finished Surfaces.
Centerless Grinding

High‑Consistency Production For Rods, Pins And Cylindrical Parts.
Surface Grinding

Process Shoulders, Flats And Strict‑Tolerance Length Features.
EDM & Wire‑Cut EDM

Process Hard Materials, Deep Slots And Intricate Complex Details.
Surface Treatment Services

Support Polishing, Lapping, Passivation And Functional Coating.
Heat‑Treatment Coordination

Arrange Custom Heat‑Treatment To Meet Hardness And Toughness Demands.
Dimensional & Geometric Inspection

Inspect Roundness, Runout, Concentricity, Diameter And Surface Roughness.

CNC Turning

For Machining Diameters, Shoulders, Grooves, Threads And Internal Bores.

Turn‑Mill Machining

For Cross Holes, Flats, Slots And Off‑Axis Features In One Setup.

Cylindrical Grinding

Achieve Precision Diameters And High‑Quality Finished Surfaces.

Centerless Grinding

High‑Consistency Production For Rods, Pins And Cylindrical Parts.

Surface Grinding

Process Shoulders, Flats And Strict‑Tolerance Length Features.

EDM & Wire‑Cut EDM

Process Hard Materials, Deep Slots And Intricate Complex Details.

Surface Treatment Services

Support Polishing, Lapping, Passivation And Functional Coating.

Heat‑Treatment Coordination

Arrange Custom Heat‑Treatment To Meet Hardness And Toughness Demands.

Dimensional & Geometric Inspection

Inspect Roundness, Runout, Concentricity, Diameter And Surface Roughness.

*Not sure which finish is right for your part? Explore our complete guide

Injection Molding Process

STEP 1

Drawing Review
STEP 2

Process Planning
STEP 3

Process Planning
STEP 4

Heat Treatment
STEP 5

Precision Finishing
STEP 6

Secondary Machining & Inspection
STEP 7

Final Packaging

Guides to Your Stamping & Die Cast Mold

Knowledge

Comprehensive Guide to Common Die Casting Defects and Practical Solutions

Die casting is one of the most effective methods for producing high-quality metal parts with complex geometries. However, despite its many advantages, the process can be prone to various defects ...

Learn More

Knowledge

Vertical vs. Horizontal – Which One Do You Really Need?

When sourcing machined parts or purchasing a new CNC mill, one fundamental question often arises: Vertical or Horizontal? This single decision impacts everything—cost per part, setup time, tool life, and ...

Learn More

Knowledge

Achieving Tight Tolerances in Die Design: Key Design Considerations for Precision Stamping

Precision stamping relies heavily on the accuracy of die design, and tight tolerances are the cornerstone of high-quality stamped parts. For manufacturing teams, engineers, and procurement professionals, mastering tolerance control ...

Learn More

FAQs

What types of round components can you manufacture?

Can you control concentricity and runout?

Can you manufacture thin-wall sleeves?

Do you provide cylindrical or centerless grinding?

Can you match pins and bushings as sets?

Start Your Project

Request a Quote for Precision Round Parts

Upload your drawing and include the material, heat treatment, quantity, fit requirements, critical diameters, runout or concentricity requirements, surface finish, and mating-part information.

Get Free Quote

WHY CHOOSE LEADPOINT

Expert Team, Exquisite Molding

The Leadpoint mold design team combines deep industry experience with practical expertise. Our core team members include:

General Manager / Founder: 15+ years in precision mold and machining
Technical Director: 12+ years in CNC machining and mold design
Production Manager: 10+ years in precision manufacturing management
Quality Manager: 8+ years in precision parts quality control

What You Can Expect From Us

Round-Part Process Planning

Turning, grinding, milling, and EDM are combined according to the relationship between diameters and secondary features.
Functional Datum Control

Inspection is organized around the actual axis, mating surface, or assembly reference.
Material Range

Tool steels, stainless steels, aluminum, copper alloys, carbide, and engineering plastics can be evaluated.
Repeatability for Spare Parts

Controlled drawings and inspection records support repeat orders and replacement components.
After-Sales Technical Support

Finished diameters, threads, sealing surfaces, and polished areas receive suitable handling and packaging protection.
